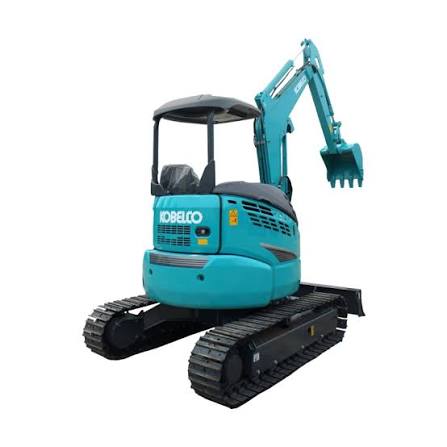

Kobelco SK35SR-6
Model SK35SR-6 · Engine 3TNV88F-EPB
24.4 HP
Power
3.840 kg
Operating Wt.
95.5 Nm
Torque
Informasi Umum
- Merek
- Kobelco
- Model
- SK35SR-6
- Kategori
- Hydraulic Excavator
Mesin
- Engine Brand
- Yanmar
- Engine Type
- 3TNV88F-EPB
- Silinder
- 3
- Displacement
- 1642 cc
- Power
- 18,2 kW
- Power
- 24,4 HP
- Torque
- 95,5 Nm
- Rated RPM
- 2400 rpm
- Turbocharged
- Tidak
- Emission Standard
- EPA Tier 4 Final / EU Stage V Equivalent
Berat & Kapasitas
- Operating Weight
- 3840 kg
- Shipping Weight
- 3690 kg
- Ground Pressure
- 31 kPa
Sistem Hidrolik
- Pump Type
- Variable displacement axial piston pump + 1 gear pump
- Flow Rate
- 76,8 L/min
- System Pressure
- 23 MPa
- Hydraulic Tank
- 25,2 L
- Total Hydraulic System
- 58 L
Mobilitas
- Low Speed Travel
- 2,5 km/h
- High Speed Travel
- 4,5 km/h
- Gradeability
- 58 %
- Min Turning Radius
- 2190 mm
Dimensi
- Length
- 4750 mm
- Width
- 1700 mm
- Height
- 2510 mm
- Ground Clearance
- 290 mm
- Track Width
- 300 mm
- Tail Swing Radius
- 980 mm
Kapasitas Fluida
- Fuel Tank
- 42 L
- Engine Oil
- 6,7 L
- Coolant
- 4,8 L
- Hydraulic Tank
- 25,2 L
- Hydraulic System
- 58 L
- Transmission Oil
- —
Fast Moving Spare Parts
- Engine Oil Filter
- VV129150-35153
- Fuel Filter
- VV129242-55700 & VV129004-55801
- Air Filter (Outer)
- Y119808-12520
- Air Filter (Inner)
- Y119808-12530
- Hydraulic Return Filter
- PA52V00002R100
- Hydraulic Pilot Filter
- PV52V00010F1
- Fan Belt
- VV129612-42350
- Battery
- 12V, 72Ah atau 80Ah sebanyak 1 buah
