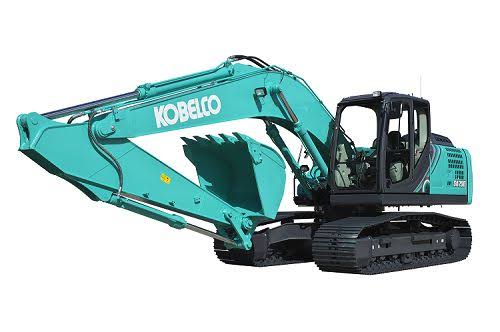

Kobelco SK200-10
Model SK200-10 · Engine J05E-TG
158 HP
Power
20.600 kg
Operating Wt.
572 Nm
Torque
Informasi Umum
- Merek
- Kobelco
- Model
- SK200-10
- Kategori
- Hydraulic Excavator
Mesin
- Engine Brand
- HINO
- Engine Type
- J05E-TG
- Silinder
- 4
- Displacement
- 5123 cc
- Power
- 118 kW
- Power
- 158 HP
- Torque
- 572 Nm
- Rated RPM
- 2000 rpm
- Turbocharged
- Ya
- Emission Standard
- Tier 3 / Stage IIIA Equivalent
Berat & Kapasitas
- Operating Weight
- 20600 kg
- Shipping Weight
- 19800 kg
- Ground Pressure
- 35 kPa
Sistem Hidrolik
- Pump Type
- 2 variable displacement axial piston pumps + 1 gear pump
- Flow Rate
- 440 L/min
- System Pressure
- 34,3 MPa
- Hydraulic Tank
- 140 L
- Total Hydraulic System
- 244 L
Mobilitas
- Low Speed Travel
- 3,6 km/h
- High Speed Travel
- 6 km/h
- Gradeability
- 70 %
- Min Turning Radius
- 3540 mm
Dimensi
- Length
- 9600 mm
- Width
- 2990 mm
- Height
- 3030 mm
- Ground Clearance
- 450 mm
- Track Width
- 2390 mm
- Tail Swing Radius
- 2910 mm
Kapasitas Fluida
- Fuel Tank
- 320 L
- Engine Oil
- 20,5 L
- Coolant
- 19 L
- Hydraulic Tank
- 140 L
- Hydraulic System
- 244 L
- Transmission Oil
- 4,5 L
Fast Moving Spare Parts
- Engine Oil Filter
- S1560-72261 / S1560-72430
- Fuel Filter
- 23304-EV460 (Primary Water Separator) / 23390-E0020 (Secondary Filter)
- Air Filter (Outer)
- YN11P00029S002
- Air Filter (Inner)
- YN11P00029S003
- Hydraulic Return Filter
- YN52V01016R600
- Hydraulic Pilot Filter
- YN52V01011R100
- Fan Belt
- 8330-10112
- Battery
- 2 x 12V / 120 Ah (Sistem kelistrikan elektrikal utama dipasang seri menghasilkan sirkuit 24V)
