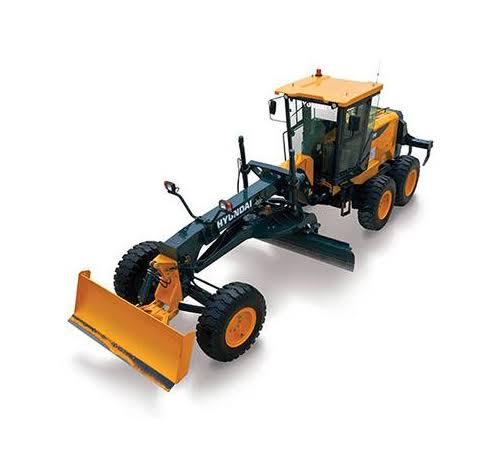

Hyundai HG170
Model HG170 · Engine 6BTA5.9-C180
177 HP
Power
14.500 kg
Operating Wt.
750 Nm
Torque
Informasi Umum
- Merek
- Hyundai
- Model
- HG170
- Kategori
- Motor Grader
Mesin
- Engine Brand
- Cummins
- Engine Type
- 6BTA5.9-C180
- Silinder
- 6
- Displacement
- 5900 cc
- Power
- 132 kW
- Power
- 177 HP
- Torque
- 750 Nm
- Rated RPM
- 2200 rpm
- Turbocharged
- Ya
- Emission Standard
- EPA Tier 2 / EU Stage II
Berat & Kapasitas
- Operating Weight
- 14500 kg
- Shipping Weight
- 14100 kg
- Ground Pressure
- —
Sistem Hidrolik
- Pump Type
- Gear Pump / Piston Pump System
- Flow Rate
- 99 L/min
- System Pressure
- 17,5 MPa
- Hydraulic Tank
- 65 L
- Total Hydraulic System
- 120 L
Mobilitas
- Low Speed Travel
- 6,5 km/h
- High Speed Travel
- 49,2 km/h
- Gradeability
- 40 %
- Min Turning Radius
- 7300 mm
Dimensi
- Length
- 8353 mm
- Width
- 2565 mm
- Height
- 3590 mm
- Ground Clearance
- 339 mm
- Track Width
- 2120 mm
- Tail Swing Radius
- —
Kapasitas Fluida
- Fuel Tank
- 370 L
- Engine Oil
- 17 L
- Coolant
- 30 L
- Hydraulic Tank
- 65 L
- Hydraulic System
- 120 L
- Transmission Oil
- 28 L
Fast Moving Spare Parts
- Engine Oil Filter
- LF16015 / LF3349
- Fuel Filter
- FS1280 (Fuel/Water Separator) & FF5052 (Fuel Filter)
- Air Filter (Outer)
- AH1101 / YA00010041
- Air Filter (Inner)
- YA00010042
- Hydraulic Return Filter
- 31E1-0018 / 31Q4-20340
- Hydraulic Pilot Filter
- 31E1-0020
- Fan Belt
- 3911581
- Battery
- 12V / 120 Ah x 2 unit (Sistem 24V)
