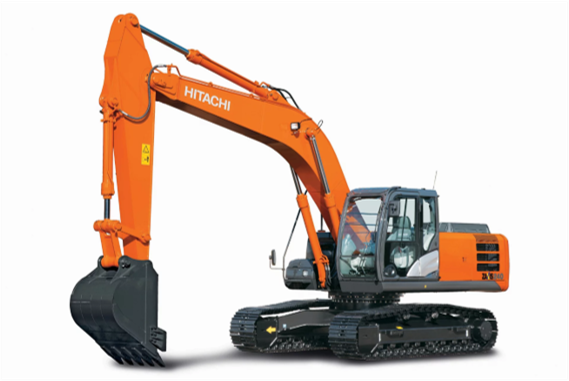

Hitachi ZX240-5G
Model ZX240-5G · Engine CC-6BG1T
177 HP
Power
23.400 kg
Operating Wt.
637 Nm
Torque
Informasi Umum
- Merek
- Hitachi
- Model
- ZX240-5G
- Kategori
- Hydraulic Excavator
Mesin
- Engine Brand
- Isuzu
- Engine Type
- CC-6BG1T
- Silinder
- 6
- Displacement
- 6494 cc
- Power
- 132 kW
- Power
- 177 HP
- Torque
- 637 Nm
- Rated RPM
- 2150 rpm
- Turbocharged
- Ya
- Emission Standard
- EPA Tier 2 / EU Stage II
Berat & Kapasitas
- Operating Weight
- 23400 kg
- Shipping Weight
- 22700 kg
- Ground Pressure
- 51 kPa
Sistem Hidrolik
- Pump Type
- 2 Variable Displacement Axial Piston Pumps (HIOS III System)
- Flow Rate
- 448 L/min
- System Pressure
- 34,3 MPa
- Hydraulic Tank
- 147 L
- Total Hydraulic System
- 268 L
Mobilitas
- Low Speed Travel
- 3,5 km/h
- High Speed Travel
- 5,5 km/h
- Gradeability
- 70 %
- Min Turning Radius
- 3580 mm
Dimensi
- Length
- 10270 mm
- Width
- 2990 mm
- Height
- 3190 mm
- Ground Clearance
- 460 mm
- Track Width
- 600 mm
- Tail Swing Radius
- 2940 mm
Kapasitas Fluida
- Fuel Tank
- 510 L
- Engine Oil
- 25 L
- Coolant
- 26 L
- Hydraulic Tank
- 147 L
- Hydraulic System
- 268 L
- Transmission Oil
- 7,8 L
Fast Moving Spare Parts
- Engine Oil Filter
- 1-13240232-2
- Fuel Filter
- Main: 1-87310247-0 / Pre-Filter: 4616544
- Air Filter (Outer)
- YA00014387
- Air Filter (Inner)
- YA00014388
- Hydraulic Return Filter
- 4656623
- Hydraulic Pilot Filter
- 4630525
- Fan Belt
- 1-13671520-0
- Battery
- 12V / 88 Ah x 2 unit (Sistem 24V
