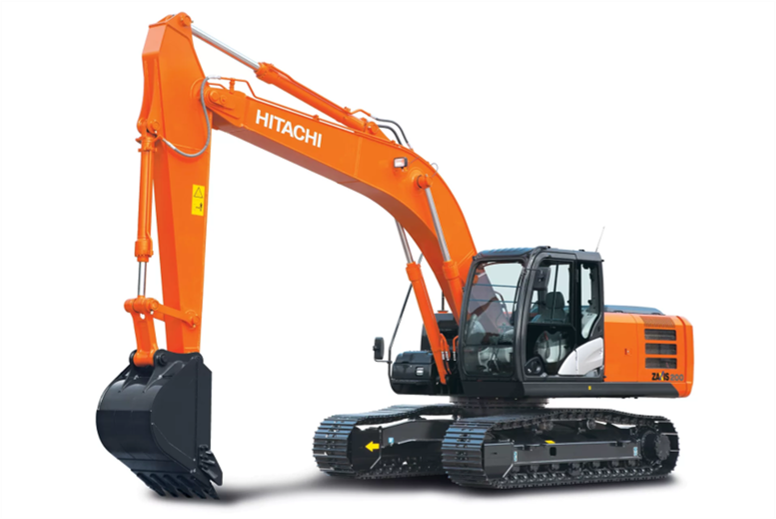

Hitachi ZX200-5G
Model ZX200-5G · Engine CC-6BG1T
168 HP
Power
19.800 kg
Operating Wt.
540 Nm
Torque
Informasi Umum
- Merek
- Hitachi
- Model
- ZX200-5G
- Kategori
- Hydraulic Excavator
Mesin
- Engine Brand
- Isuzu
- Engine Type
- CC-6BG1T
- Silinder
- 6
- Displacement
- 6494 cc
- Power
- 125 kW
- Power
- 168 HP
- Torque
- 540 Nm
- Rated RPM
- 2100 rpm
- Turbocharged
- Ya
- Emission Standard
- EPA Tier 2 / EU Stage II
Berat & Kapasitas
- Operating Weight
- 19800 kg
- Shipping Weight
- 19100 kg
- Ground Pressure
- 45 kPa
Sistem Hidrolik
- Pump Type
- 2 Variable Displacement Axial Piston Pumps
- Flow Rate
- 424 L/min
- System Pressure
- 34,3 MPa
- Hydraulic Tank
- 134 L
- Total Hydraulic System
- 240 L
Mobilitas
- Low Speed Travel
- 3,5 km/h
- High Speed Travel
- 5,5 km/h
- Gradeability
- 70 %
- Min Turning Radius
- 3400 mm
Dimensi
- Length
- 9660 mm
- Width
- 2800 mm
- Height
- 3010 mm
- Ground Clearance
- 450 mm
- Track Width
- 600 mm
- Tail Swing Radius
- 2750 mm
Kapasitas Fluida
- Fuel Tank
- 400 L
- Engine Oil
- 25 L
- Coolant
- 23 L
- Hydraulic Tank
- 134 L
- Hydraulic System
- 240 L
- Transmission Oil
- 6,8 L
Fast Moving Spare Parts
- Engine Oil Filter
- 1-13240232-2 / 1132402322
- Fuel Filter
- Main: 1-87310247-0 | Pre-Filter: 4616544 / 4642642
- Air Filter (Outer)
- 4461421 / YA00014387
- Air Filter (Inner)
- 4461422 / YA00014388
- Hydraulic Return Filter
- 4656623
- Hydraulic Pilot Filter
- 4294130 / 4630525
- Fan Belt
- 1-13671391-0
- Battery
- 12V / 88 Ah x 2 unit (Sistem 24V)
