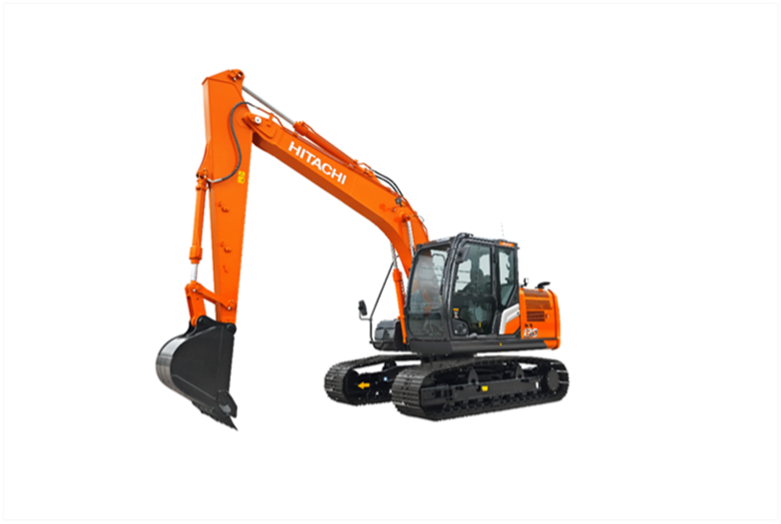

Hitachi ZX130-7G
Model ZX130-7G · Engine 4JJ1X
99 HP
Power
13.100 kg
Operating Wt.
375 Nm
Torque
Informasi Umum
- Merek
- Hitachi
- Model
- ZX130-7G
- Kategori
- Hydraulic Excavator
Mesin
- Engine Brand
- ISUZU
- Engine Type
- 4JJ1X
- Silinder
- 4
- Displacement
- 2999 cc
- Power
- 74 kW
- Power
- 99 HP
- Torque
- 375 Nm
- Rated RPM
- 2000 rpm
- Turbocharged
- Ya
- Emission Standard
- US EPA Tier 3 / EU Stage IIIA Equivalent
Berat & Kapasitas
- Operating Weight
- 13100 kg
- Shipping Weight
- 12700 kg
- Ground Pressure
- 43 kPa
Sistem Hidrolik
- Pump Type
- HIOS V System (Sistem manajemen hidrolik cerdas hemat energi dengan 2 variable displacement axial piston pumps + 1 gear pump)
- Flow Rate
- 234 L/min
- System Pressure
- 34,3 MPa
- Hydraulic Tank
- 74 L
- Total Hydraulic System
- 155 L
Mobilitas
- Low Speed Travel
- 3,4 km/h
- High Speed Travel
- 5,5 km/h
- Gradeability
- 70 %
- Min Turning Radius
- 2310 mm
Dimensi
- Length
- 7710 mm
- Width
- 2490 mm
- Height
- 2820 mm
- Ground Clearance
- 440 mm
- Track Width
- 1990 mm
- Tail Swing Radius
- 2190 mm
Kapasitas Fluida
- Fuel Tank
- 250 L
- Engine Oil
- 15 L
- Coolant
- 13,5 L
- Hydraulic Tank
- 74 L
- Hydraulic System
- 155 L
- Transmission Oil
- 2,5 L
Fast Moving Spare Parts
- Engine Oil Filter
- 8-98018858-0
- Fuel Filter
- 8-98143041-0 (Primary Fuel/Water Separator) / 8-98312918-0 (Secondary Filter)
- Air Filter (Outer)
- YA00034458
- Air Filter (Inner)
- YA00034459
- Hydraulic Return Filter
- YA00005083
- Hydraulic Pilot Filter
- YA00005051
- Fan Belt
- 8-98014843-0
- Battery
- 2 x 12V / 88 Ah (Sistem kelistrikan elektrikal utama dipasang seri menghasilkan sirkuit 24V)
