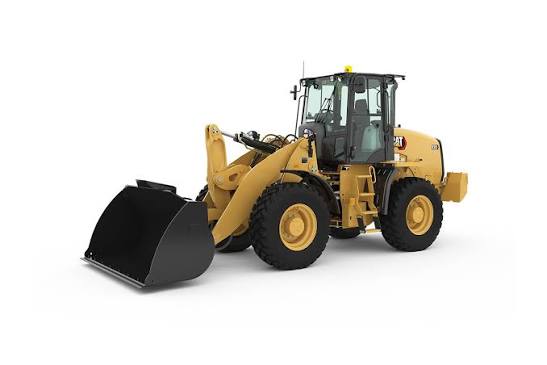

Caterpillar (CAT) 920

Name: Caterpillar (CAT) 920
Brand: Caterpillar (CAT)

Model 920 · Engine Cat C4.4

100 HP

Power

9.800 kg

Operating Wt.

450 Nm

Torque

Informasi Umum

Engine Brand: Caterpillar
Engine Type: Cat C4.4
Silinder: 4
Displacement: 4400 cc
Power: 74 kW
Power: 100 HP
Torque: 450 Nm
Rated RPM: 2200 rpm
Turbocharged: Ya
Emission Standard: EPA Tier 4 Final / EU Stage V Equivalent (Sistem manajemen mesin tingkat lanjut dengan Eco Gauge untuk efisiensi bahan bakar maksimal)

Pump Type: Variable displacement tandem axial piston pumps (Sistem hidrolik sirkuit tertutup dengan kontrol daya elektronik cerdas IPC - Intelligent Power Control)
Flow Rate: 150 L/min
System Pressure: 28 MPa
Hydraulic Tank: 90 L
Total Hydraulic System: 120 L

Engine Oil Filter: 416-5664 / 11Q6-90470
Fuel Filter: 476-0814 (Water Separator / Pre-Filter) & 476-0818 / 11Q6-70430 (Main Filter)
Air Filter (Outer): 308-5421
Air Filter (Inner): 308-5422
Hydraulic Return Filter: 450-4561
Hydraulic Pilot Filter: 1G-8878
Fan Belt: 468-4530 / Poly-V Belt alternator-kipas
Battery: 12V, 120Ah atau 140Ah sebanyak 2 buah (Dihubungkan secara seri untuk menghasilkan tegangan sistem kelistrikan dan dinamo starter 24V)
