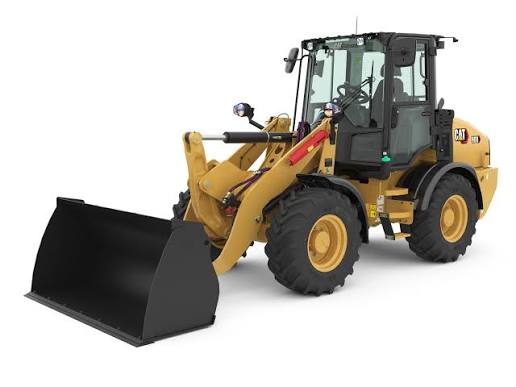

Caterpillar (CAT) 908
Model 908 · Engine Cat C2.8
74.3 HP
Power
6.565 kg
Operating Wt.
300 Nm
Torque
Informasi Umum
- Merek
- Caterpillar (CAT)
- Model
- 908
- Kategori
- Wheel Loader
Mesin
- Engine Brand
- Caterpillar
- Engine Type
- Cat C2.8
- Silinder
- 4
- Displacement
- 2800 cc
- Power
- 55,4 kW
- Power
- 74,3 HP
- Torque
- 300 Nm
- Rated RPM
- 2200 rpm
- Turbocharged
- Ya
- Emission Standard
- EPA Tier 4 Final / EU Stage V Equivalent (Sistem manajemen mesin tingkat lanjut dengan Eco Gauge untuk efisiensi bahan bakar maksimal)
Berat & Kapasitas
- Operating Weight
- 6565 kg
- Shipping Weight
- 6100 kg
- Ground Pressure
- 280 kPa
Sistem Hidrolik
- Pump Type
- Variable displacement tandem axial piston pumps (Sistem hidrolik sirkuit tertutup dengan kontrol daya elektronik cerdas IPC - Intelligent Power Control)
- Flow Rate
- 85 L/min
- System Pressure
- 23,5 MPa
- Hydraulic Tank
- 48 L
- Total Hydraulic System
- 67 L
Mobilitas
- Low Speed Travel
- 10 km/h
- High Speed Travel
- 40 km/h
- Gradeability
- 60 %
- Min Turning Radius
- 4340 mm
Dimensi
- Length
- 5765 mm
- Width
- 1985 mm
- Height
- 2765 mm
- Ground Clearance
- 340 mm
- Track Width
- 1570 mm
- Tail Swing Radius
- 2765 mm
Kapasitas Fluida
- Fuel Tank
- 85 L
- Engine Oil
- 9 L
- Coolant
- 12 L
- Hydraulic Tank
- 48 L
- Hydraulic System
- 67 L
- Transmission Oil
- 2,5 L
Fast Moving Spare Parts
- Engine Oil Filter
- 509-5694 / 11Q6-90470
- Fuel Filter
- 509-5693 (Water Separator / Pre-Filter) & 524-7333 / 11Q6-70430 (Main Filter)
- Air Filter (Outer)
- 517-8656
- Air Filter (Inner)
- 517-8657
- Hydraulic Return Filter
- 446-1748
- Hydraulic Pilot Filter
- 1G-8878
- Fan Belt
- 531-9252 / Poly-V Belt alternator-kipas
- Battery
- 12V, 120Ah atau 140Ah sebanyak 2 buah (Dihubungkan secara seri untuk menghasilkan tegangan sistem kelistrikan dan dinamo starter 24V)
