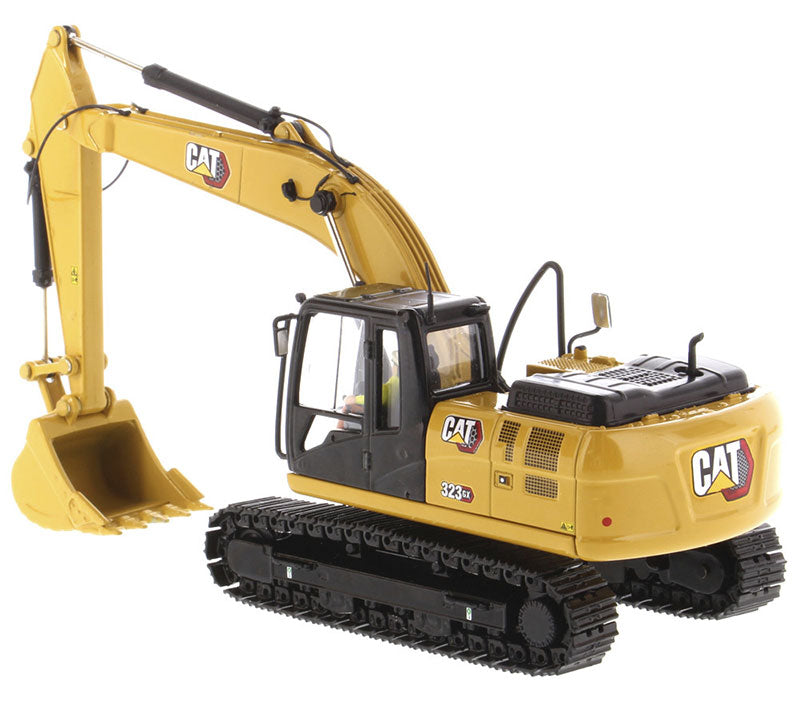

Caterpillar (CAT) 323 GX
Model 323 GX · Engine Cat C4.4
145 HP
Power
20.000 kg
Operating Wt.
560 Nm
Torque
Informasi Umum
- Merek
- Caterpillar (CAT)
- Model
- 323 GX
- Kategori
- Hydraulic Excavator
Mesin
- Engine Brand
- Caterpillar
- Engine Type
- Cat C4.4
- Silinder
- 4
- Displacement
- 4400 cc
- Power
- 108 kW
- Power
- 145 HP
- Torque
- 560 Nm
- Rated RPM
- 2000 rpm
- Turbocharged
- Ya
- Emission Standard
- EPA Tier 3 / EU Stage IIIA Equivalent (Dirancang tangguh untuk wilayah dengan kualitas bahan bakar yang bervariasi)
Berat & Kapasitas
- Operating Weight
- 20000 kg
- Shipping Weight
- 19400 kg
- Ground Pressure
- 51 kPa
Sistem Hidrolik
- Pump Type
- Variable displacement tandem axial piston pumps (Sistem hidrolik sirkuit terbuka dengan katup kontrol utama elektro-hidrolik terintegrasi untuk respons tuas yang presisi)
- Flow Rate
- 410 L/min
- System Pressure
- 35 MPa
- Hydraulic Tank
- 115 L
- Total Hydraulic System
- 218 L
Mobilitas
- Low Speed Travel
- 3,2 km/h
- High Speed Travel
- 5,4 km/h
- Gradeability
- 70 %
- Min Turning Radius
- 3650 mm
Dimensi
- Length
- 9530 mm
- Width
- 2980 mm
- Height
- 2960 mm
- Ground Clearance
- 470 mm
- Track Width
- 2380 mm
- Tail Swing Radius
- 2830 mm
Kapasitas Fluida
- Fuel Tank
- 390 L
- Engine Oil
- 15 L
- Coolant
- 22 L
- Hydraulic Tank
- 115 L
- Hydraulic System
- 218 L
- Transmission Oil
- 5 L
Fast Moving Spare Parts
- Engine Oil Filter
- 457-4664 / 11Q6-90470
- Fuel Filter
- 476-0814 (Water Separator / Pre-Filter) & 513-4491 / 11Q6-70430 (Main Filter)
- Air Filter (Outer)
- 454-3252
- Air Filter (Inner)
- 454-3253
- Hydraulic Return Filter
- 459-0097
- Hydraulic Pilot Filter
- 1G-8878
- Fan Belt
- 468-4530 / Poly-V Belt alternator-kipas
- Battery
- 12V, 120Ah atau 140Ah sebanyak 2 buah (Dihubungkan secara seri untuk menghasilkan tegangan sistem kelistrikan dan dinamo starter 24V)
