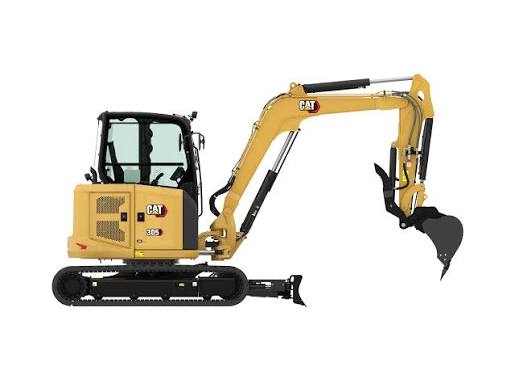

Caterpillar (CAT) 305 CR - Tier 3

Name: Caterpillar (CAT) 305 CR - Tier 3
Brand: Caterpillar (CAT)

Model 305 CR - Tier 3 · Engine Mitsubishi S4Q2-T

48 HP

Power

4.900 kg

Operating Wt.

160 Nm

Torque

Informasi Umum

Engine Brand: Caterpillar
Engine Type: Mitsubishi S4Q2-T
Silinder: 4
Displacement: 2505 cc
Power: 35,4 kW
Power: 48 HP
Torque: 160 Nm
Rated RPM: 2400 rpm
Turbocharged: Ya
Emission Standard: EPA Tier 3 / EU Stage IIIA Equivalent (Sistem manajemen mesin tingkat lanjut dengan Eco Gauge untuk efisiensi bahan bakar maksimal)

Pump Type: Variable displacement tandem axial piston pumps (Sistem hidrolik sirkuit tertutup dengan kontrol daya elektronik cerdas IPC - Intelligent Power Control)
Flow Rate: 110 L/min
System Pressure: 24,5 MPa
Hydraulic Tank: 50 L
Total Hydraulic System: 78 L

Engine Oil Filter: 153-5656 / 11Q6-90470
Fuel Filter: 228-9130 (Water Separator / Pre-Filter) & 228-9129 / 11Q6-70430 (Main Filter)
Air Filter (Outer): 134-8726
Air Filter (Inner): 140-2334
Hydraulic Return Filter: 197-6469
Hydraulic Pilot Filter: 1G-8878
Fan Belt: 139-2342 / Poly-V Belt alternator-kipas
Battery: 12V, 120Ah atau 140Ah sebanyak 2 buah (Dihubungkan secara seri untuk menghasilkan tegangan sistem kelistrikan dan dinamo starter 24V)
