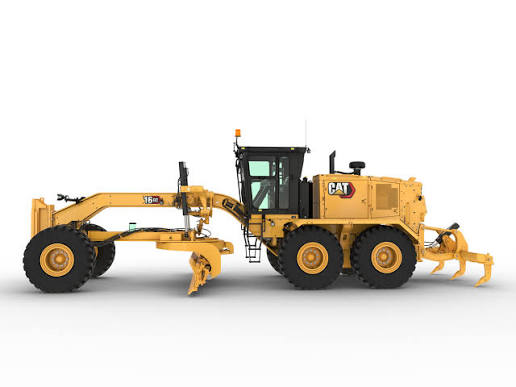

Caterpillar (CAT) 16 GC
Model 16 GC · Engine Cat C13
263 HP
Power
30.100 kg
Operating Wt.
1450 Nm
Torque
Informasi Umum
- Merek
- Caterpillar (CAT)
- Model
- 16 GC
- Kategori
- Motor Grader
Mesin
- Engine Brand
- Caterpillar
- Engine Type
- Cat C13
- Silinder
- 6
- Displacement
- 12500 cc
- Power
- 196 kW
- Power
- 263 HP
- Torque
- 1450 Nm
- Rated RPM
- 2000 rpm
- Turbocharged
- Ya
- Emission Standard
- EPA Tier 3 / EU Stage IIIA Equivalent
Berat & Kapasitas
- Operating Weight
- 30100 kg
- Shipping Weight
- 27500 kg
- Ground Pressure
- —
Sistem Hidrolik
- Pump Type
- Variable displacement axial piston pump (Sistem hidrolik Proportional Priority Pressure-Compensating - PPPC, memberikan kontrol moldboard/blade yang sangat presisi dan responsif)
- Flow Rate
- 245 L/min
- System Pressure
- 25,8 MPa
- Hydraulic Tank
- 85 L
- Total Hydraulic System
- 140 L
Mobilitas
- Low Speed Travel
- 4 km/h
- High Speed Travel
- 47,5 km/h
- Gradeability
- —
- Min Turning Radius
- 8200 mm
Dimensi
- Length
- 9930 mm
- Width
- 3100 mm
- Height
- 3760 mm
- Ground Clearance
- 430 mm
- Track Width
- —
- Tail Swing Radius
- —
Kapasitas Fluida
- Fuel Tank
- 520 L
- Engine Oil
- 36 L
- Coolant
- 60 L
- Hydraulic Tank
- 85 L
- Hydraulic System
- 140 L
- Transmission Oil
- 87 L
Fast Moving Spare Parts
- Engine Oil Filter
- 1R-1808
- Fuel Filter
- 1R-0749 & 320-8616
- Air Filter (Outer)
- 523-4986
- Air Filter (Inner)
- 523-4987
- Hydraulic Return Filter
- 478-2135
- Hydraulic Pilot Filter
- 1G-8878
- Fan Belt
- 490-2826
- Battery
- 12V, 120Ah atau 140Ah sebanyak 2 buah
